Everything at a glance
With Smart Cabinets, you are in charge: make your pre-selection and get in touch with our ZOLLER sales team - we will be happy to advise you and configure your desired model.

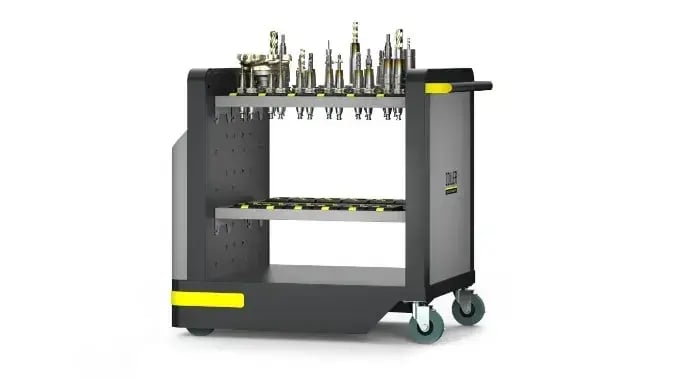

»toolCart«
Size
| H x W x D: 985 x 660 x 1050 mm |
Payload
| Max. 450 kg |
Tool inserts - SK version
| SK 30, size S, width 72 mm, max. 13 per frame |
| SK 40, size S, width 72 mm, max. 13 per frame |
| SK 50, size L, width 95 mm, max. 7 per frame |
Tool inserts - HSK version
| HSK 25, 32, size S, width 72 mm, max. 13 per frame |
| HSK 40, size S, width 72 mm, max. 13 per frame |
| HSK 50, size S, width 72 mm, max. 13 per frame |
| HSK 63, size S or L, width 72 or 95 mm, max. 13 or 7 per frame |
| HSK 80, size L, width 95 mm, max. 7 per frame |
| HSK 100, size L, width 95 mm, max. 7 per frame |
Tool inserts - VDI version
| VDI 30, size S, width 72 mm, max. 13 per frame |
| VDI 40, size S, width 72 mm, max. 13 per frame |
Tool inserts - PSC version
| PSC 40, size S, width 72 mm, max. 13 per frame |
| PSC 50, size S, width 72 mm, max. 13 per frame |
| PSC 63, size S, width 72 mm, max. 13 per frame |
Tool inserts - blank version
| B58, width 58 mm, max. 7 per frame |
| B75, width 75 mm, max. 7 per frame |
| B120, width 120 mm, max. 7 per frame |
Tool inserts - attachment holder version
| D 78 VSH size 1, width 95 mm, max. 7 per frame |
Tool inserts - wooden inserts version
| Wooden insert/blank, width 328 mm, max. 2 per frame |
| D 42 14 holes, width 328 mm, max. 2 per frame |
Accessories
| Additional tool change frame |
| Pull-out drawer |
| Bottom storage shelf |
| Side storage shelf |
| Inserts of your choice |

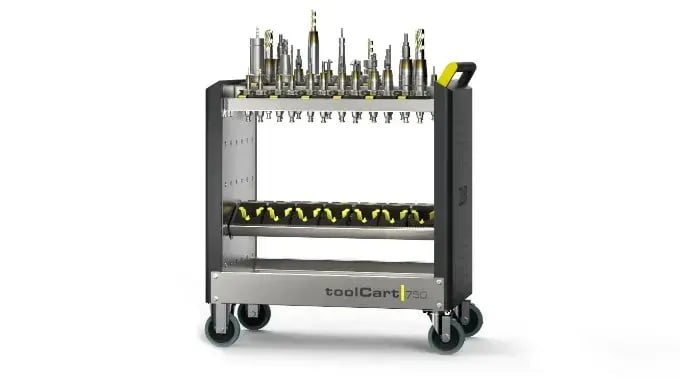

»toolCart 750«
Size
| H x W x D: 910 x 560 x 880 mm |
Payload
| Max. 450 kg |
Tool inserts - SK version
| SK 30, size S, width 72 mm, max. 12 per frame |
| SK 40, size S, width 72 mm, max. 12 per frame |
| SK 50, size L, width 95 mm, max. 7 per frame |
Tool inserts - HSK version
| HSK 25, 32, size S, width 72 mm, max. 12 per frame |
| HSK 40, size S, width 72 mm, max. 12 per frame |
| HSK 50, size S, width 72 mm, max. 12 per frame |
| HSK 63, size S or L, width 72 or 95 mm, max. 12 or 7 per frame |
| HSK 80, size L, width 95 mm, max. 7 per frame |
| HSK 100, size L, width 95 mm, max. 7 per frame |
Tool inserts - VDI version
| VDI 30, size S, width 72 mm, max. 12 per frame |
| VDI 40, size S, width 72 mm, max. 12 per frame |
Tool inserts - PSC version
| PSC 40, size S, width 72 mm, max. 12 per frame |
| PSC 50, size S, width 72 mm, max. 12 per frame |
| PSC 63, size S, width 72 mm, max. 12 per frame |
Tool inserts - blank version
| B58, width 58 mm, max. 7 per frame |
| B75, width 75 mm, max. 7 per frame |
| B120, width 120 mm, max. 7 per frame |
Tool inserts - attachment holder version
| D 78 VSH size 1, width 95 mm, max. 7 per frame |
Tool inserts - wooden inserts version
| Wooden insert/blank, width 328 mm, max. 2 per frame |
| D 42 14 holes, width 328 mm, max. 2 per frame |
Accessories
| Additional tool change frames |
| Inserts of your choice |
